SkyRC Wifi Module for SkyRC Charger & ESC

SkyRC Wifi Module for SkyRC Charger & ESC

SkyRC Wifi Module for SkyRC Charger & ESC

29.95

Op voorraad

29.95

Beschikbaarheid: Levertijd : 3-7 dagen Artikel: SK600075
Categorie:

Merk / Model :

Beschrijving

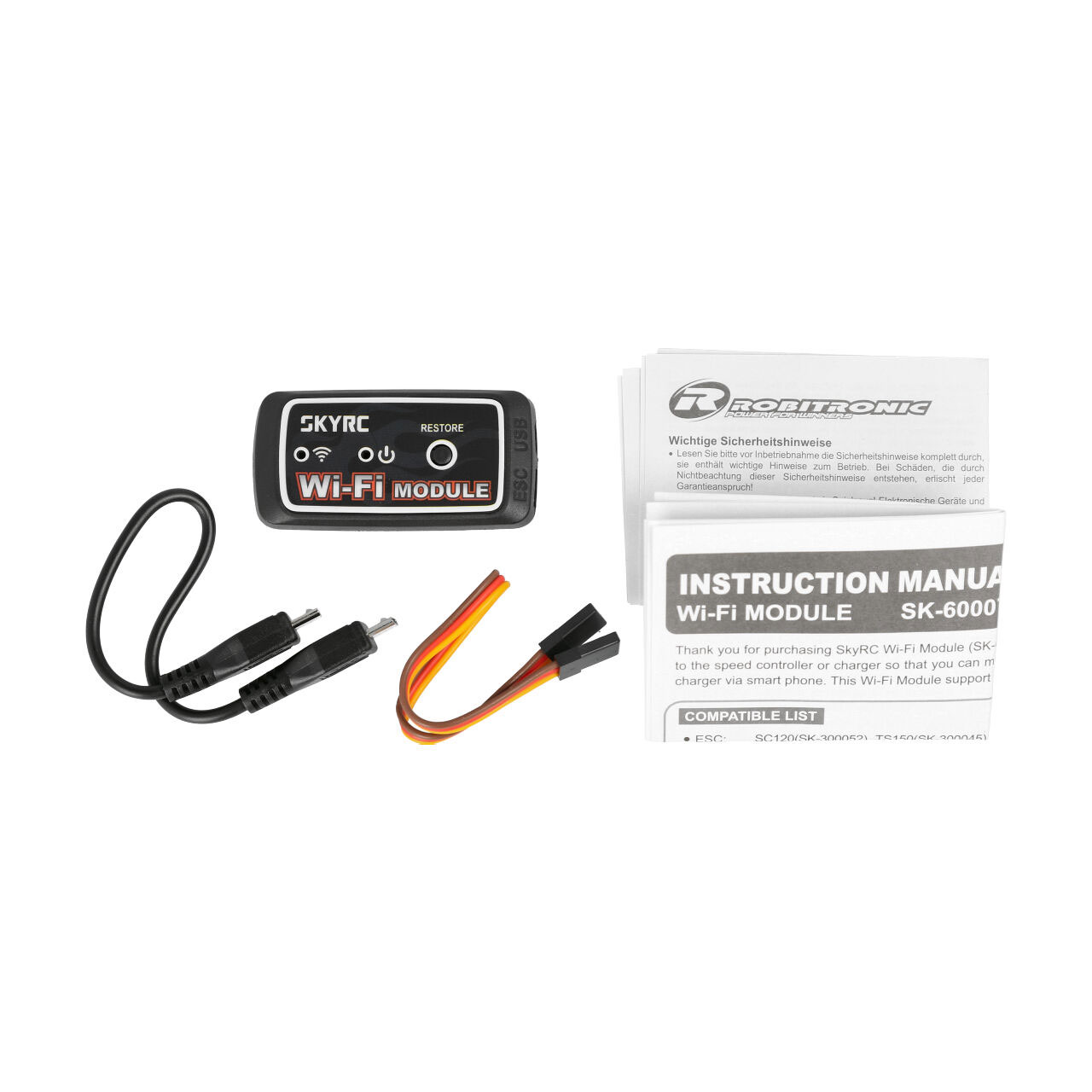

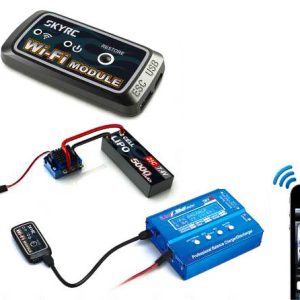

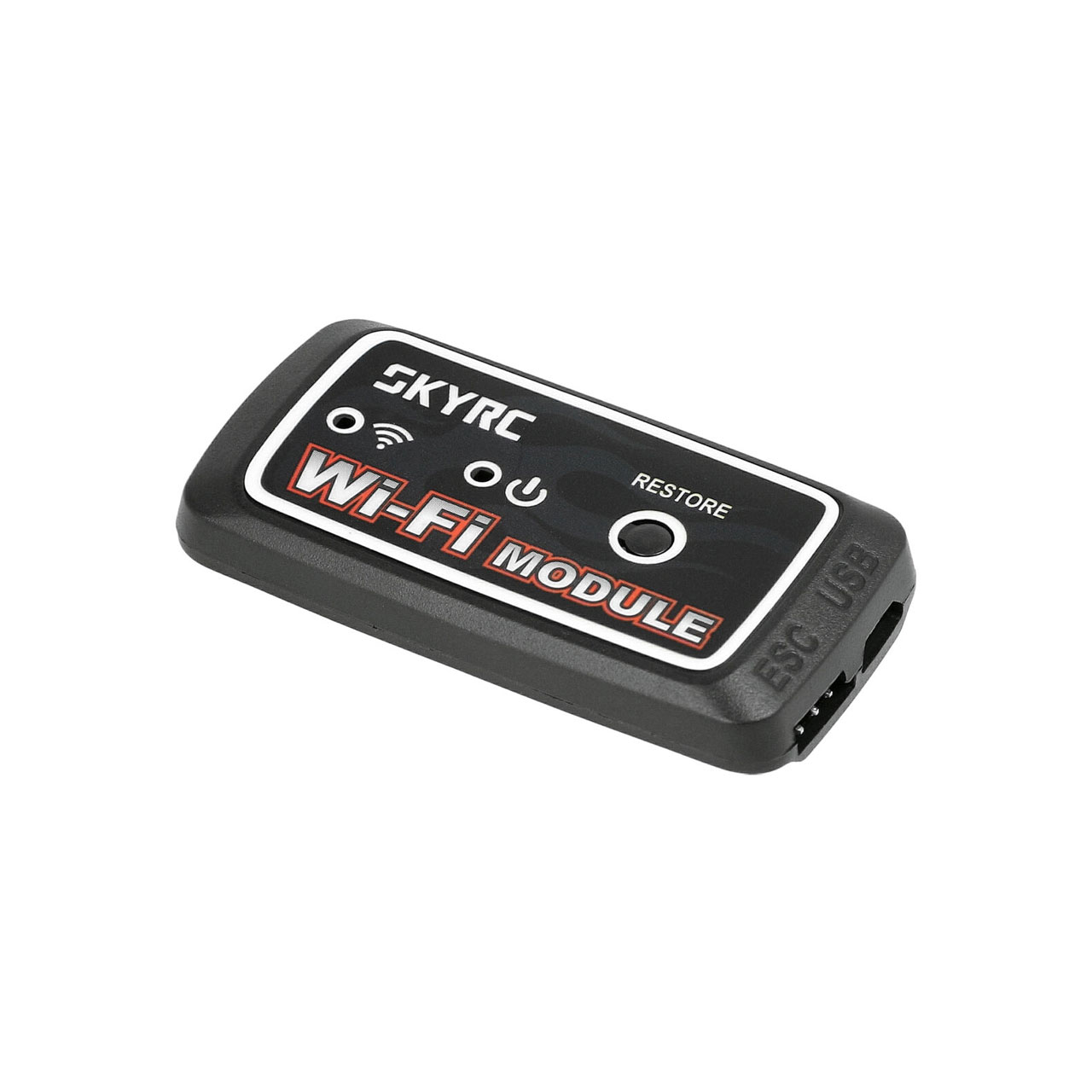

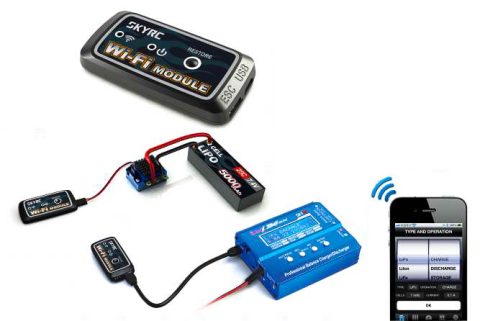

The SkyRC Smartphone WiFi Module ESC Programmer connects your SkyRC ESC or SkyRC Battery Charger to your iOS or Android device for quick and easy adjustments. This feature does require one or two applications to be downloaded to your iOS or Android device (see Application Download Required information below).

Features:

  • Customize ESC settings via smartphone
  • Compatible with iOS and Android devices
  • Compatible with select SkyRC ESC’s and Chargers

Specifications:
Size:
60x30x10.8mm
Connection: 3 Pin Connector for ESC; Micro USB for ChargerLED Indicator
LED Indicator:
Power/WiFi Status
WiFi: IEEE802.11b/gn
Communication Distance: 30m
Uart:
Baudrate 4800-15200
Input: 4.5Vdc-18Vdc
Power Consumption: 1W Max.
Operating Temp: 0°C – 40°C
Relative Humidity: 10%-90%, Non-Condensing
Storage Temperature: -10°C – 70°C
Storage Humidity Range: 5%-95%, Non-Condensing
ESC Compatibility: 120A & 160A (not compatible with 50A)

Application Download Required
In order to use the WiFi Module with either a SkyRC ESC or Charger, you will need to download the following apps from the App Store, or Google Play:

  • “ESC Link” is required for ESC programming
  • “Charger Link” is required for charger programming
